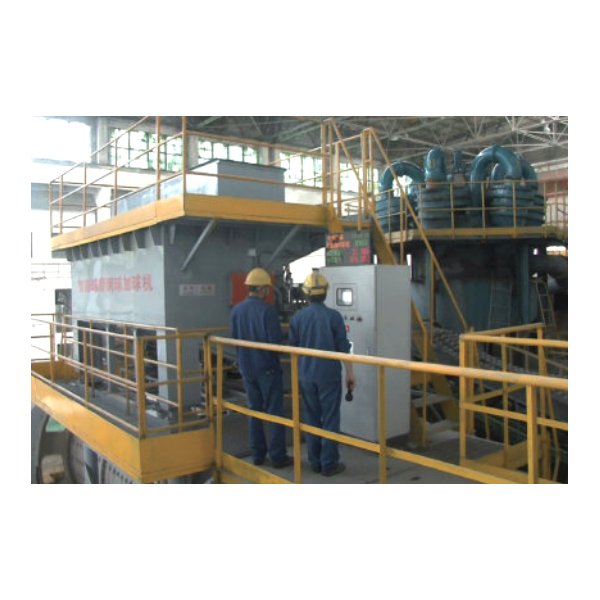

An intelligent ball charging machine installed at a mining and mineral processing site in Panzhihua, Sichuan, China, providing automated steel ball addition for grinding operations.
Huate Magnet Intelligent Automatic Grinding Ball Charger
Intelligent Ball Charging System for Efficient Grinding Operations
Huate Intelligent Automatic Grinding Ball Charger is an intelligent equipment designed for automatic steel ball addition in grinding processes. By integrating magnetic gripping technology, intelligent weighing modules, automatic control and remote monitoring functions, the system provides accurate and efficient grinding media management for ball mills.
The automated ball charging system helps optimize grinding performance by adding steel balls according to preset parameters, ore feeding conditions or ball consumption requirements, reducing manual operation and improving production efficiency.
Features of Automatic Ball Charging System
1. Multi-Size Steel Ball Addition with Dual Magnetic Clamping System

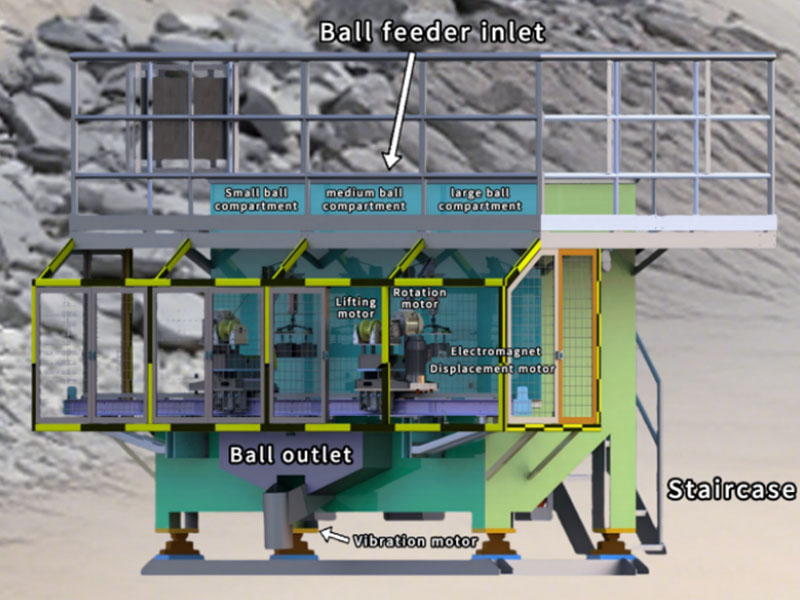

The equipment adopts a three-compartment storage structure with dual magnetic clamps, enabling automatic addition of different sizes of steel balls according to grinding process requirements.
The strong magnetic adsorption system ensures stable steel ball handling and prevents ball sticking during operation.
2. Precise Quantitative Ball Addition
The automatic grinding ball charger adopts intelligent weighing technology to accurately calculate the quantity of steel balls added each time.
With timed and quantitative feeding control, the system maintains stable grinding media levels and avoids excessive or insufficient ball addition.
- Ball addition accuracy: ±1%
- Individual weighing calculation
- Automatic ball consumption recording
3. Intelligent Control and Remote Management
The system supports remote monitoring, parameter adjustment and communication with the plant central control system.
Operators can check equipment status, modify operating parameters and receive fault alarms through remote management functions, improving operation efficiency and reducing onsite workload.
4. High-Efficiency Automated Operation

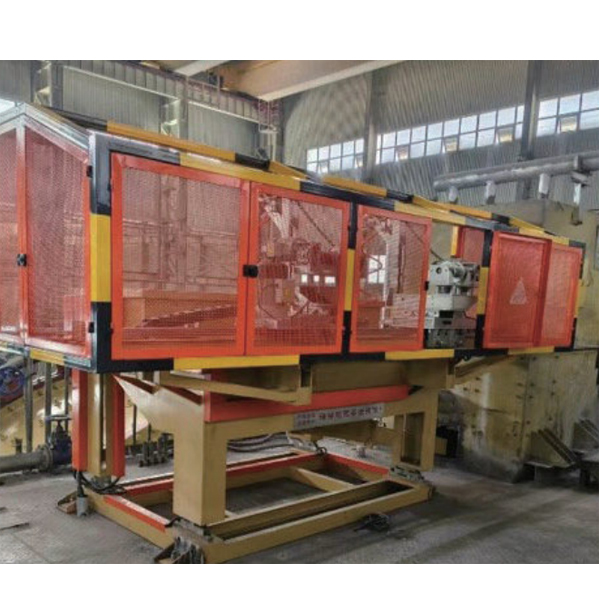

The intelligent gantry magnetic ball charging machine adopts a track-mounted robotic arm structure.
The ball charging efficiency can reach 3–5 tons/hour, which is more than three times faster than manual operation.
The fully enclosed and unmanned operation mode helps reduce safety risks during steel ball handling.
5. AI-Based Optimization (Optional)
The system can be equipped with AI algorithms to optimize ball addition strategies according to operating parameters such as:
- Ball mill current
- Operating sound
- Grinding conditions
This enables more intelligent adjustment of grinding media consumption and improves mill performance.
Working Principle
The automatic ball charging machine uses electromagnetic gripping technology to pick up steel balls from the storage area.
Each electromagnetic unit is equipped with a weighing module to measure the steel ball quantity during every loading cycle.
According to preset parameters or real-time grinding requirements, the system automatically transports and releases steel balls into the mill, achieving continuous and accurate grinding media replenishment.
Technical Specifications
| Parameter | HJQ-JI-3 | HJQ-JI-6 | HJQ-JI-10 |
|---|---|---|---|
| Ball Storage Capacity (t) | 3 | 6 | 10 |
| Steel Ball Diameter (mm) | 40-120 | 40-120 | 40-120 |
| Overall Dimensions (mm) | 2000 × 1200 × 1900 | 2000 × 1200 × 1900 | 2200 × 1600 × 2000 |
| Total Power (kW) | 3.5 | 3.5 | 3.5 |
| Total Weight (kg) | 1670 | 1670 | 1930 |
| Metering Method | Counting / Weighing | Counting / Weighing | Counting / Weighing |
| Gripping Mechanism | Claw Handle | Claw Handle | Claw Handle |
| Control System | PLC + Touch Screen | PLC + Touch Screen | PLC + Touch Screen |
| Operating Temperature (°C) | -20 to 50 | -20 to 50 | -20 to 50 |
| Parameter | HJQ-CII-6 | HJQ-CII-10 | HJQ-CII-20 |
|---|---|---|---|
| Ball Storage Capacity (t) | 6 | 10 | 20 |
| Steel Ball Diameter (mm) | 30-120 | 30-120 | 30-120 |
| Overall Dimensions (mm) | 3500 × 2300 × 1500 | 3500 × 2300 × 1800 | 4500 × 2300 × 2000 |
| Total Power (kW) | 6.5 | 6.5 | 7.5 |
| Total Weight (kg) | 2000 | 2200 | 2500 |
| Metering Method | Counting | Counting | Counting |
| Gripping Mechanism | Robot Arm + Magnetic Hold | Robot Arm + Magnetic Hold | Robot Arm + Magnetic Hold |
| Control System | PLC + Touch Screen | PLC + Touch Screen | PLC + Touch Screen |
| Operating Temperature (°C) | -20 to 50 | -20 to 50 | -20 to 50 |
Applications
The Automatic Grinding Ball Charger is suitable for mining and mineral processing industries requiring automatic grinding media management, including:
- Metal ore beneficiation factories
- Mining concentrators
- Ball mill grinding systems
- Automated mineral processing production lines
- Intelligent automatic steel ball feeding
- Accurate grinding media control
- Reduced manual labor requirements
- Improved operational safety
- Remote monitoring and centralized management
- Enhanced grinding process stability
Why Choose Huate Automatic Ball Charging System?
Huate provides advanced intelligent equipment solutions for modern mining and mineral processing operations.
Application Cases
Huate intelligent ball charging machines have been applied in mining and mineral processing operations, providing automated and efficient steel ball addition solutions for grinding systems.
An intelligent ball charging machine applied at a mining and mineral processing site in Gansu, China, supporting automated and controlled grinding media addition.
