Ball Mill Liner Handler
The Huate Ball Mill Liner Handler is designed for the safe and efficient replacement of liners in ball mills and semi-autogenous mills. It can also be used for lifting and handling heavy objects in specialized maintenance applications.
Available in 3-DOF and 7-DOF configurations, the machine uses an adjustable-height mechanism to accommodate ball mills with different working heights. The 7-DOF configuration is equipped with a hydraulic rotating liner gripper, allowing the liner to be clamped, lifted, transported and rotated in three dimensions for positioning inside the mill.
The equipment is suitable for applications in mining, metallurgy and building materials, particularly for mechanized mill maintenance and liner replacement operations.
Features
1. Configurations
Huate provides two configurations to meet different mill liner replacement requirements.
The 3-DOF configuration provides functions including:
- · Telescopic movement, lifting and rotation of the boom
- · Forward and backward movement of the main beam
- · Main beam lifting and lowering
- · Straight-line travel, turning and lateral movement of the machine
- · Forward and backward movement of the liner trolley
The 7-DOF configuration adds a hydraulic rotating liner gripper to the 3-DOF design. The gripper can hold the liner and perform three-dimensional angular rotation for more flexible liner positioning.
2. Adjustable Height for Different Ball Mills
The ball mill liner handler features an adjustable-height mechanism that allows the equipment to adapt to different mill working heights.
Huate also provides customized ball mill liner replacement solutions according to the customer’s mill dimensions and operating requirements.
3. Hydraulic Rotating Liner Gripper
The 7-DOF model is equipped with a hydraulic rotating gripper at the front of the telescopic arm.
During liner replacement, the gripper clamps and lifts the new liner supplied outside the ball mill. The telescopic arm then delivers the liner to the required installation position inside the mill.
4. Telescopic Main Beam and Arm
The telescopic main beam and arm allow the liner handler to enter the ball mill through the feed inlet and provide the required reach for liner replacement operations.
The equipment combines machine travel, beam adjustment, arm extension and liner handling functions into an integrated mill relining system.
5. Mechanized Mill Liner Replacement
The Ball Mill Liner Handler is designed to mechanize liner handling and positioning during mill maintenance.
It is primarily used for liner replacement in ball mills and semi-autogenous mills, helping provide a more efficient approach to heavy liner handling and positioning operations.
Main Components

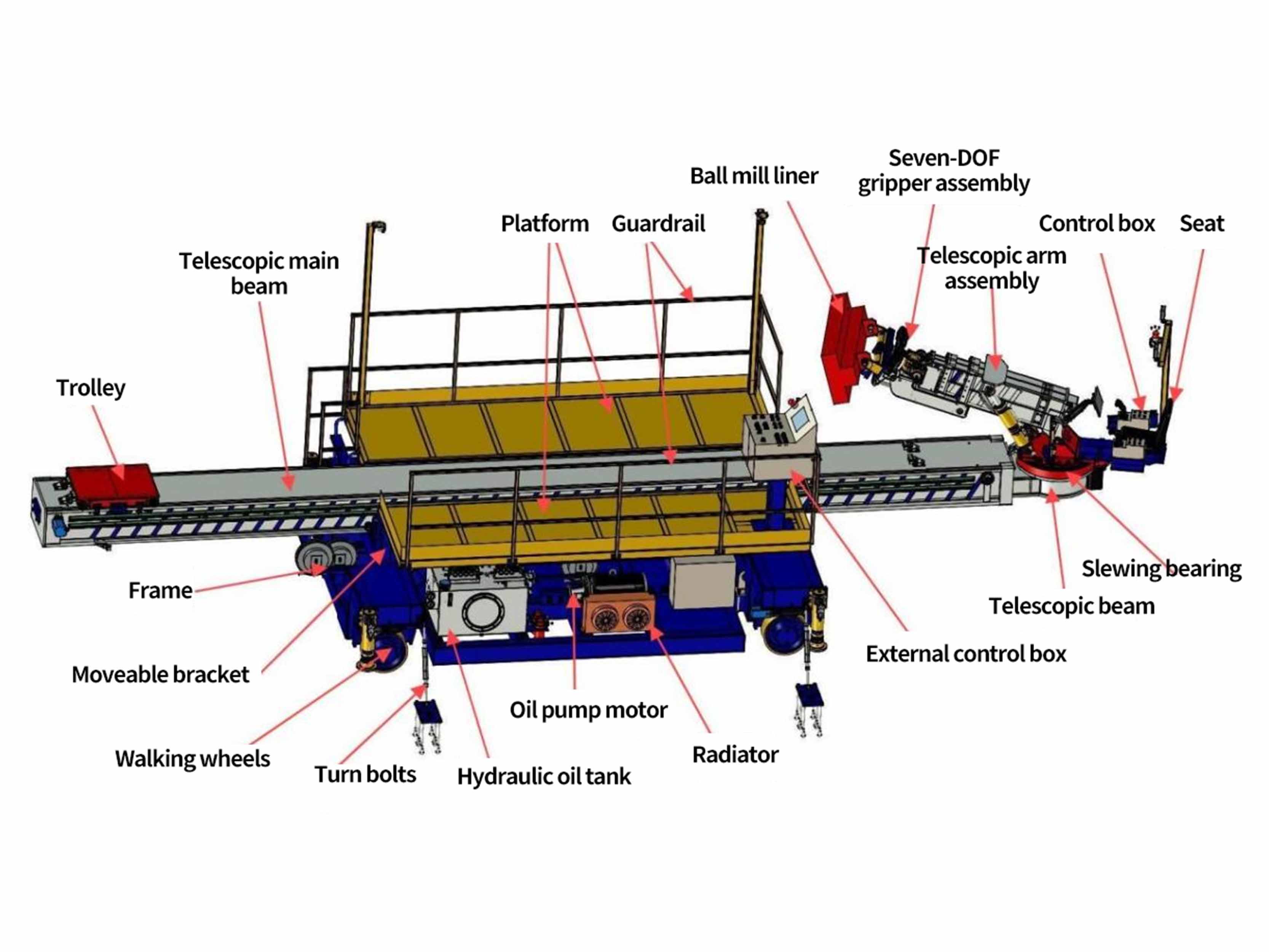

The Ball Mill Liner Handler consists of several major assemblies, including:
- Telescopic main beam assembly
- Locomotive assembly
- Telescopic arm assembly
- 7-DOF gripper assembly
- Liner trolley
- Hydraulic system
- Electrical control system

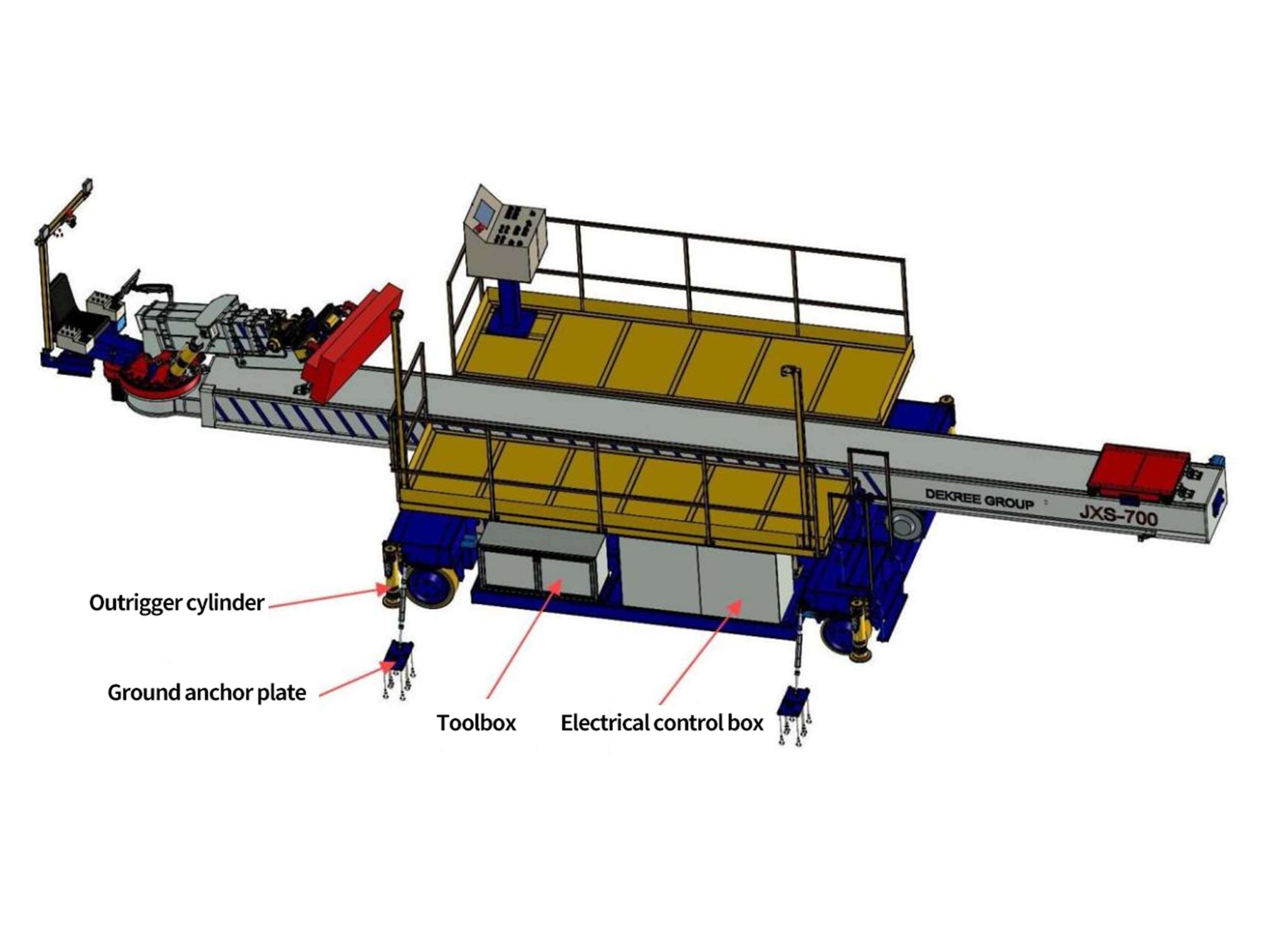

The locomotive assembly includes the frame, movable bracket, wheel assembly, hydraulic oil tank, oil pump motor and electrical control box.
How the Ball Mill Liner Handler Works
Step 1: Positioning the Machine
The machine is driven to the center position of the ball mill feed inlet.
Step 2: Adjusting the Main Beam
The main beam is raised to the appropriate working height. The telescopic arm at the front of the main beam is then extended into the ball mill.
Step 3: Stabilizing the Equipment
Hydraulic support cylinders at the four corners of the machine are activated. Tension bolts are then used to secure the machine to the ground.
Step 4: Clamping and Lifting the Liner
For the 7-DOF configuration, the hydraulic rotating gripper clamps and lifts the new liner supplied from outside the ball mill.
Step 5: Positioning the Liner
The telescopic arm moves the liner to the required installation position. The hydraulic gripper provides three-dimensional rotation for liner positioning.
Step 6: Retracting the Equipment
After the liner replacement operation is completed, the tension bolts are released, the support cylinders are retracted, and the telescopic arm and main beam are withdrawn and lowered. The machine is then driven back to its parking position.
Applications
The Ball Mill Liner Handler is primarily designed for liner replacement and mechanized maintenance of:
- Ball mills
- Semi-autogenous mills
- Grinding mills in mining operations
- Metallurgical processing factories
- Building materials production facilities
The equipment can be used for different mill capacities and is suitable for maintenance operations and equipment modernization where mechanized liner handling is required.
Ball Mill Size Requirements
The standard 7-DOF Ball Mill Liner Handler is suitable for ball mills meeting the following dimensional requirements:
|
Parameter |
Requirement |
| Ball mill feed inlet diameter | ≥¢1300mm |
| Ball mill cylinder diameter | ¢5000mm～¢6600mm |
| Ball mill cylinder length | 5000–7500 mm |
For ball mills outside these dimensions, Huate can develop customized liner replacement solutions according to the customer’s specific equipment and site conditions.
Technical Specifications
JXS-700 7-DOF Ball Mill Liner Handler
| Parameter | Specification |
| Rated lifting capacity | 0.7 t |
| Boom elevation angle | +50° / -10° |
| Telescopic beam stroke | 1100 mm |
| Maximum crossbeam travel | 2500 mm |
| Minimum telescopic arm turning radius | 2200 mm |
| Maximum telescopic arm turning radius | 3000 mm |
| Hydraulic station rated working pressure | 16 MPa |
| Motor | Y180L-4 |
| Motor power | 22 kW |
| Power supply | 380 VAC, 50 Hz, 3-phase, 70 A |
| Maximum overall dimensions (L × W × H) | 11125 × 3244 × 3430 mm |
Optional Hydraulic Hammer
A hydraulic hammer for removing liner fixing bolts is available according to customer requirements.
The hydraulic hammer is designed for mechanized ball mill maintenance and liner replacement. It consists mainly of a working body, hydraulic pump station and electrical system.
The actuator is manually controlled by a button. Pressing the button once triggers a single strike, while holding the button enables continuous striking.
The hydraulic system uses a tubular throttle valve to regulate return oil flow and control the striking frequency of the bolt hammer.
Customized Ball Mill Relining Solutions
Different grinding mills have different feed inlet dimensions, cylinder sizes, working heights and site conditions.
Huate designs and manufactures customized mill liner handling and relining solutions according to the customer’s mill specif ications and operating requirements.
For a customized solution, please provide the following information:
- Ball mill feed inlet diameter
- Ball mill cylinder diameter
- Ball mill cylinder length
- Mill working height
- Maximum liner weight
- Available working space around the mill
- Required liner handling configuration
Our engineering team can evaluate the mill dimensions and recommend a suitable ball mill liner handler configuration.
Why Choose a Mechanized Mill Liner Handler?
Replacing heavy mill liners is an important part of grinding mill maintenance. A dedicated liner handling machine provides mechanical assistance for lifting, transporting and positioning liners during relining operations.
Huate’s Ball Mill Liner Handler integrates machine travel, telescopic beam movement, boom positioning and liner gripping functions into one system, providing a dedicated solution for mechanized ball mill liner replacement.
For applications requiring different mill dimensions or operating conditions, Huate can provide customized mill relining machine solutions.
Request a Ball Mill Liner Handler Solution
Looking for a ball mill liner handler, mill relining machine or customized liner replacement equipment?
Contact Huate with your ball mill dimensions and liner requirements. Our team can evaluate your application and provide a suitable mill liner handling solution.
