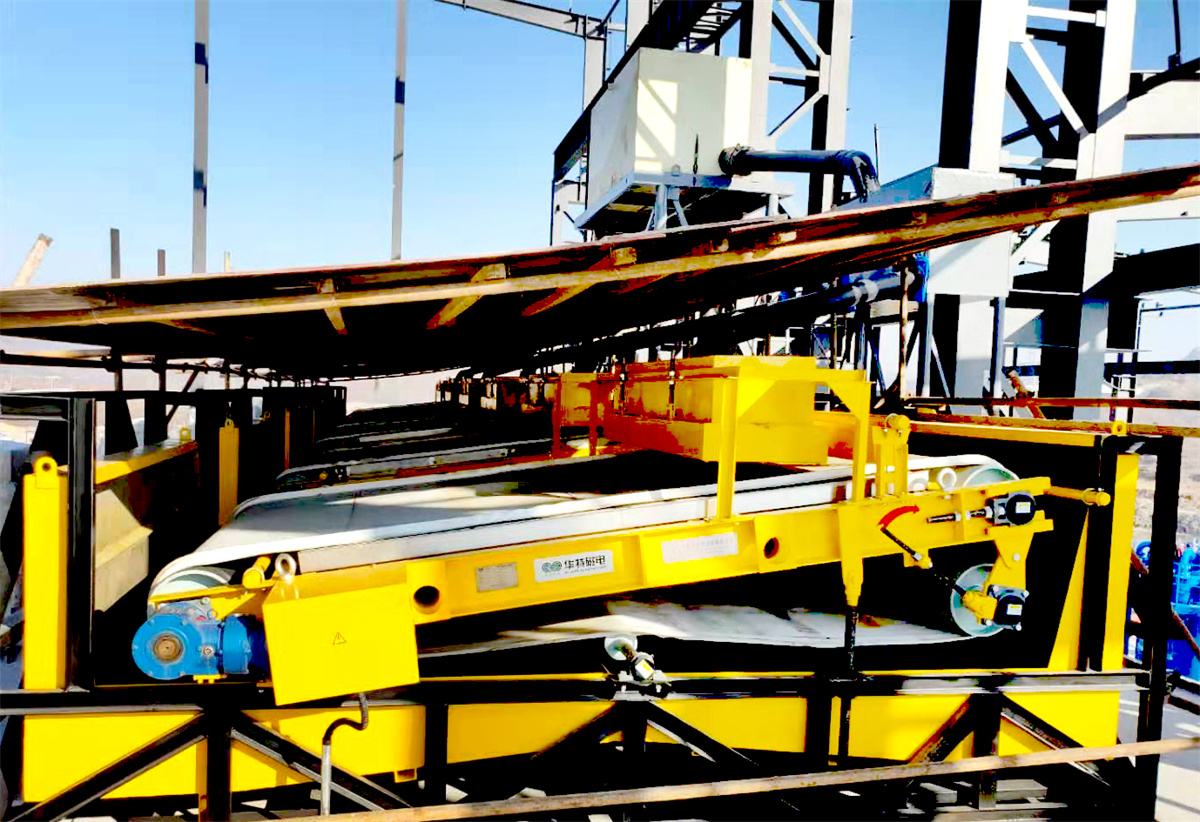

SGB Series Wet Belt Strongly Magnetic Separator

Short Description:

It is used for iron removal and purification of non-metallic minerals in wet processing, especially for wet iron removal of non-metallic minerals such as quartz sand, potassium feldspar, and soda feldspar. In addition, it has a good separation performance for weak magnetic minerals such as hematite, limonite, specularite, siderite, manganese ore, and tantalum-niobium ore.

Send email to us

Product Detail

Product Tags

Main Technical Specifications

Model	Width of magnetic system （ mm ）	Length of magnetic system （ mm ）			Water supply pressure （ Mpa ）	Feed size (mm)	Processing capacity （ t/h）
Model	Width of magnetic system （ mm ）	Length of magnetic system （ mm ）			Water supply pressure （ Mpa ）	Feed size (mm)	Processing capacity （ t/h）	Installed power （ kW ）
SGB-0815	800	1500	9000 ~ 12000	20～25	≥0.2	-1	5-8	1.1（ 1.5 ）
SGB-1020	1000	2000					8-12	1.5（ 2.1 ）
SGB-1220	1200	2000					10-15	2.2（ 3 ）
SGB-1525	1500	2500					15-20	2.2（ 3 ）
SGB-2025	2000	2500					20-25	3（ 4 ）
SGB-2030	2000	3000					20-25	3（ 4 ）
SGB-2525	2500	2500					25-30	4（ 5.5 ）
SGB-2530	2500	3000					25-30	4（ 5.5 ）

Note: This technical parameter table is for reference only. When processing different materials, it can be selected according to the actual situation. The red parameter is the motor power when processing metallic ores.
