High purity quartz is a key raw material for advanced industries, including photovoltaics, semiconductor manufacturing, optical communications, high-end optics, and quartz crucibles. As purity requirements continue to increase, removing trace iron and other weakly magnetic impurities from quartz has become an important step in high-purity quartz processing.
According to the U.S. Geological Survey (USGS), high-purity quartz generally contains less than 100 ppm of total impurities, while some ultra-high-purity quartz products require impurity levels of 10 ppm or less. This places increasingly stringent requirements on quartz beneficiation and purification technologies.
For quartz manufacturers seeking higher purity with lower water consumption, dry magnetic separation provides an alternative approach to conventional wet purification processes. Huate Magnet has developed the HCT Series Dry Powder Electromagnetic Iron Remover specifically for the deep removal of magnetic impurities from fine powder materials, including high purity quartz.
Why Trace Iron Removal Matters in High Purity Quartz Processing
Natural quartz deposits may contain various associated impurities, including iron-bearing and other weakly magnetic minerals. Even trace levels of iron impurities can affect the quality and performance of high purity quartz products, particularly in demanding applications such as photovoltaic and semiconductor manufacturing.
Conventional permanent magnetic separators can effectively remove relatively strong magnetic coarse-grained iron. However, fine-grained and weakly magnetic impurities can be more difficult to capture.
For this reason, high-gradient magnetic separation is increasingly important in advanced quartz purification processes. By generating a strong magnetic field and a high magnetic field gradient, electromagnetic separator can improve the capture of fine and weakly magnetic particles from quartz powder.

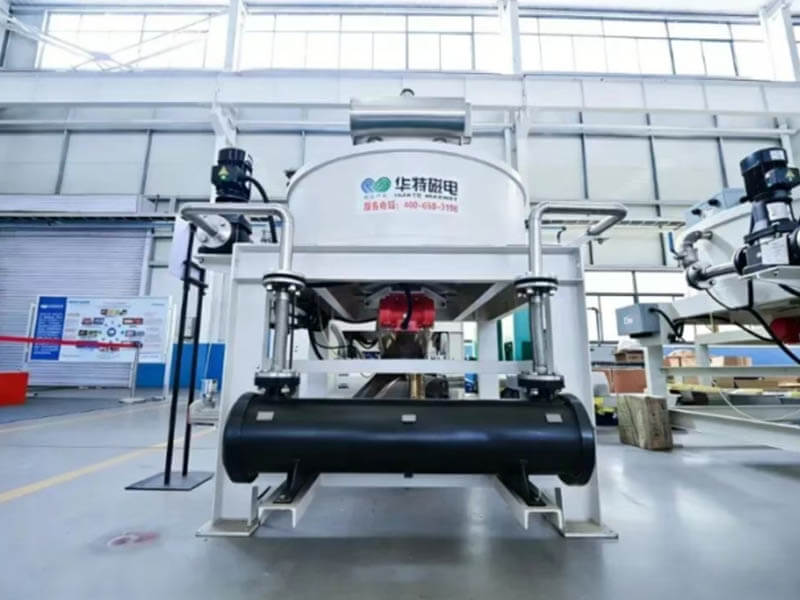

HCT Dry Powder Electromagnetic Separator for Quartz Purification
To satisfy the requirements of high-purity quartz powder processing and technology, Huate Magnet has developed the HCT Series Dry Powder Electromagnetic Iron Remover.

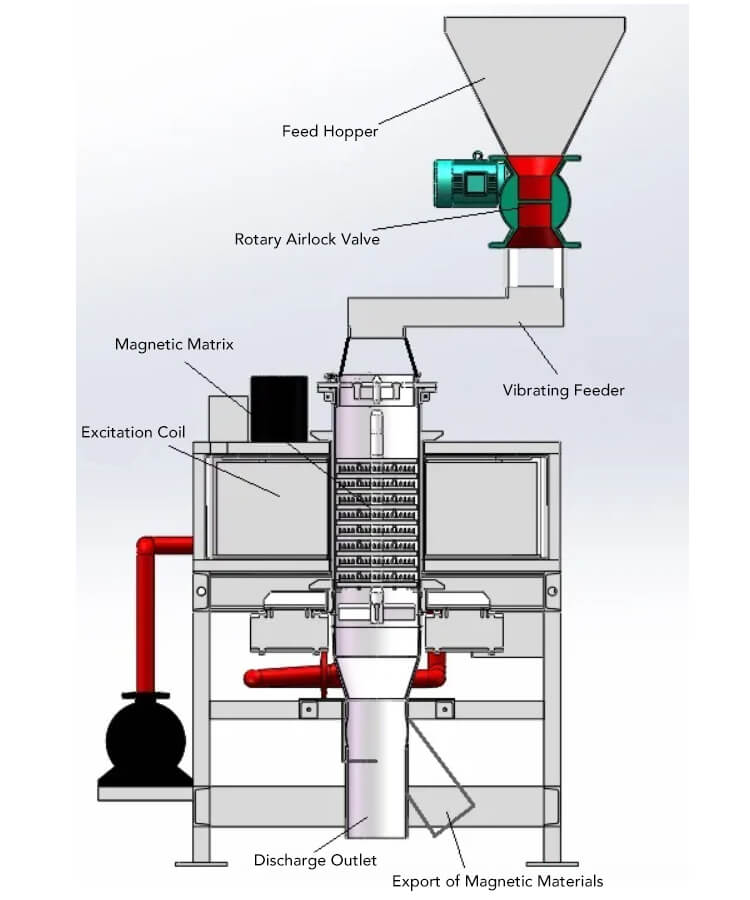

The HCT system uses electromagnetic excitation to generate a strong magnetic field. When the excitation coil is energized, the magnetic matrix inside the separation chamber becomes magnetized and produces a high-gradient magnetic field.
As dry quartz powder passes uniformly through the magnetic matrix, fine iron particles, iron oxides, and other weakly magnetic impurities are captured by the matrix, while the purified non-magnetic quartz powder continues through the discharge system.
When the magnetic matrix approaches its adsorption capacity, the system automatically switches to the cleaning stage. The electromagnetic coil is rapidly de-energized to demagnetize the matrix, while a vibration system helps discharge the captured magnetic impurities.
This creates an automated cycle of :
Feeding → Magnetic Capture → Purified Product Discharge → Demagnetization → Magnetic Impurity Discharge
The entire process operates without process water or chemical reagents, making the HCT iron remover suitable for dry quartz powder purification applications.
High-Gradient Magnetic Separation for Fine Quartz Powder
One of the key advantages of electromagnetic separation is its ability to generate a high-intensity, high-gradient magnetic field.
According to Huate’s equipment specifications, the HCT system can achieve a background magnetic field intensity of up to 10,000 Gs and is designed to capture fine weakly magnetic impurities in quartz powder materials.
For high purity quartz applications, the equipment can support impurity removal at ppm- to ppb-level targets depending on the characteristics, types of quartz feed material and the overall purification process.
The separation system can therefore be used as a deep purification stage after conventional quartz beneficiation processes, helping quartz manufacturers remove residual magnetic impurities that are difficult to remove with conventional magnetic separation equipment.
Dry Quartz Purification for More Sustainable Processing
Compared with wet purification routes, dry electromagnetic separation eliminates the need for process water during the magnetic impurity removal stage.
The HCT dry separation process provides several potential advantages:
- No process water is required for magnetic impurity removal
- No wastewater is generated by the magnetic separation stage
- No downstream drying process is required
- Lower water consumption
- Reduced energy demand associated with material drying
- Easier handling and centralized collection of separated magnetic impurities
- Suitable for water-scarce regions and dry processing plants
These characteristics make dry electromagnetic separation an attractive option for quartz manufacturers seeking to develop more resource-efficient and environmentally conscious processing flows.
Flexible Magnetic Matrix Design for Different Quartz Materials
Different quartz powders can have different particle sizes, impurity characteristics, and processing requirements. The HCT system allows different magnetic matrix configurations to be selected according to the material characteristics.
Available matrix forms can include:
- Mesh-type magnetic matrices
- Corrugated magnetic matrices
- Rod-type magnetic matrices
The magnetic matrix can also be treated for wear and corrosion resistance, helping the equipment operate under abrasive fine-powder conditions and reducing maintenance requirements.
This flexibility allows the magnetic separation system to be configured according to different quartz feed materials and purification targets.
Intelligent Control for Automated Quartz Processing
The HCT dry powder electromagnetic separator is also designed with an intelligent control system based on PLC and a human-machine interface.
Operators can select different operating modes, including:
- Local manual operation
- Local automatic operation
- Remote automatic operation
Key process parameters such as excitation time, vibration intensity, and impurity discharge cycle can be adjusted through the touchscreen interface.
The system also supports fault detection and alarm functions. With compatibility with industrial communication protocols such as Modbus and Profinet, the equipment can be integrated into plant-level DCS and MES systems.
This enables remote monitoring, parameter management, process data recording, and further integration into automated mineral processing plants.
From Quartz Beneficiation to High-Purity Quartz Production
Magnetic separation is an important part of quartz beneficiation and purification, but the appropriate separation process depends on the characteristics of the raw material and the required product specification.
For conventional quartz sand processing, magnetic separation can be incorporated after crushing, grinding, classification, washing, or other beneficiation stages. Huate’s quartz sand production line solutions combine different separation technologies according to the feed characteristics and final product requirements.
For fine dry quartz powder requiring deep removal of weakly magnetic impurities, the HCT dry powder electromagnetic separator provides a dedicated dry magnetic purification solution.

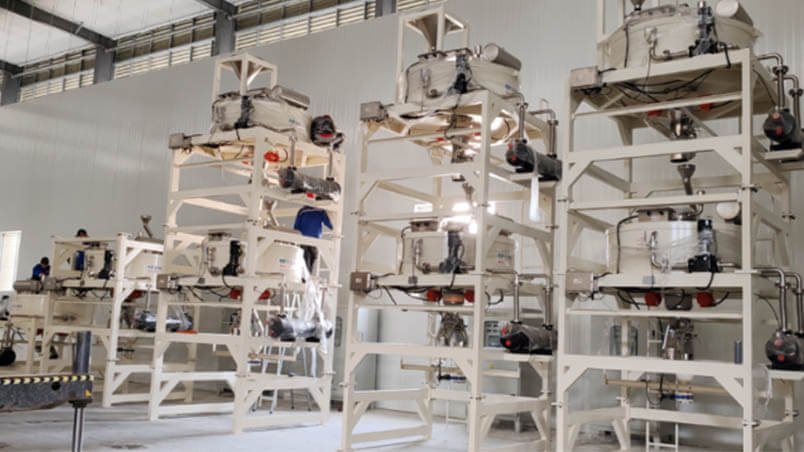

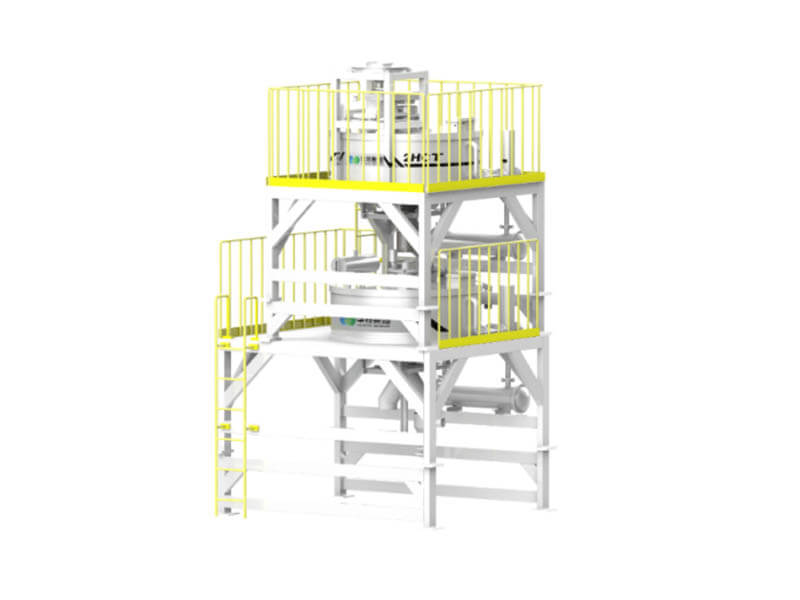

Depending on the project requirements, different magnetic separation technologies can be combined to form a multi-stage purification system.
Supporting the Next Generation of High Purity Quartz Processing
As the demand for high purity raw materials continues to grow in the photovoltaic, semiconductor, optical communications, and advanced materials industries, quartz processing equipment must provide more than conventional impurity removal.
Modern high purity quartz processing increasingly requires:
- Higher impurity removal efficiency
- Better control of trace iron contamination
- Lower water consumption
- Reduced environmental impact
- Stable long-term operation
- Automated process control
- Integration with intelligent processing plants
With its HCT Series Dry Powder Electromagnetic Iron Remover and other magnetic separation technologies, Huate Magnet provides equipment solutions for quartz purification and non-metallic mineral processing.
By combining high-gradient magnetic separation, dry processing, intelligent control, and flexible equipment configurations, Huate aims to help quartz manufacturers improve product purity while moving toward more efficient and sustainable mineral processing.
Looking for a magnetic separation solution for high purity quartz purification? Contact Huate Magnet to discuss your quartz processing requirements and laboratory testing or industrial-scale equipment options.
